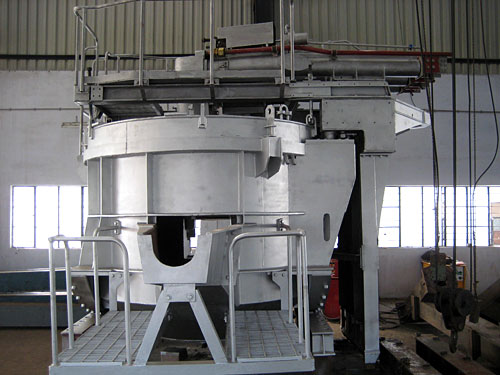

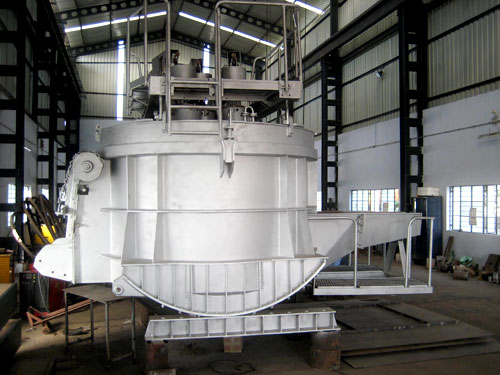

- EAF can be supplied for min. of 3 MT & LRF Can be supplied for min. of 15 MT of steel refining and upwards.
- Hydraulic electrode movement & control system
- Furnace operations and control are automated with PLC and computer based Human Interface which are very friendly to operate and maintain.
|
|
|
| » Ladle Refining Furnace |
|
| Positioned between EAF & Casting Machine to improve the productivity of the steel plant and also used for refining of molten steel |
- Minimum Pitch Circle Diameter for lower ladle refractory erosion.
- 100% Tubular Water Cooled Roof
- Prismatic Electrode mast guide for smooth operation.
- Hydraulic Electrode movement & Control system.
- Designed for metal movement by transfer trolley or with gantry swiveling arrangements.
|
|
| » Control Panel |
|
- The whole system of EAF/LHF can be equipped with PLC control system.
- There are a variety of configurations available that allow tailoring the system to your specific need.
|
|
| » Visulisation System for Furnace Control |
|
- HMI gives the ability to the operator, and the management to view the Furnace in real time.
- Human Machine Interface can display texts, pictures, bar graphs, bitmap and animated pictures.
- HMI comes with host of Management Information System reports for quick and easy decision making.
|
|
